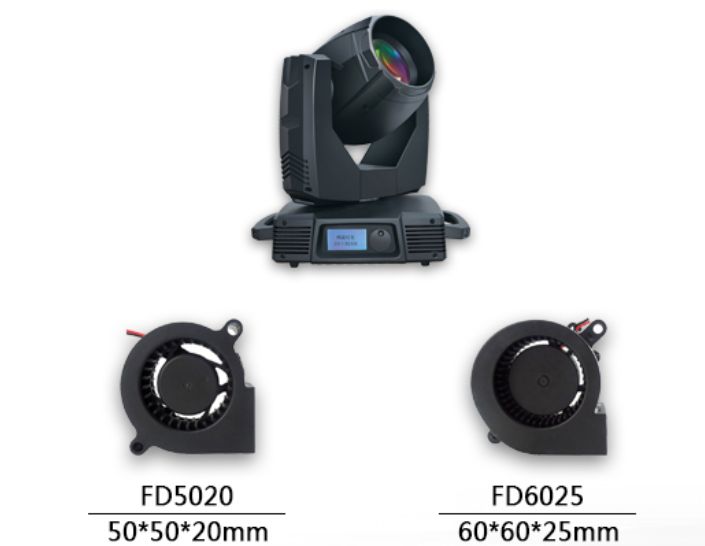

Stage Light Cooling Solution

With the continuous expansion of the lighting market, people's requirements for stage lighting tend to have the characteristic lamps and lanterns,  such as: "energy saving, bright color, easy to use, long life" and other characteristics are important choices for users.  While the stage lights shine, the stage lights will also naturally heat up,in order to make the stage lights run normally. Some lamps and lanterns manufacturers will use the aluminum substrate fitting aluminum profile and cooling fan heat dissipation. And the cooling fan can be adjusted through the software speed, so that the temperature of the LED is always controlled in the safe range.

Shenzhen LFKZ fan provides the technical experience and production capacity of Stage Light Cooling Solution for many stage lighting industry manufacturers, so as to solve the heat dissipation problem for users. Make your products have safe, long operation, low loss of cooling fan products.

product property :

Insulation impedance :DC500V Maug meter measurement，10MQ以上

Insulation and pressure resistance:A C500V 1min

insulation grade :Class B

Allowable ambient temperature range: Working: -10℃℃ ~ + 70℃℃ (hydraulic) -20℃℃ ~ + 80℃ (ball)

When stored: -20℃ ~ + 75℃ (Hydraulic pressure)

Product material:

Epitheca :PBT plastic (black)UL94V-0

hypotheca:PBT plastic (black)UL94V-0

Impeller :PBT plastic (black)UL94V-0

Bearing :ball bearing、hydraulic pressure bearing-40℃℃~+85°C(ball)

Wire:UL1061 AWG26 red:+ black

Expected:

50000 hours（ball bearing)

30000 hours (hydraulic pressure bearing)

1. 94V-0 fire protection, ROHS 2.0 environmental protection material

2. Optional automatic restart, reverse contact protection, FG, RD, PWM functions

3. Insulation level: ClassB

compliant:

Projectors,  stage lights and other industries
