The producers of Huatai in China offer high-quality products, you are welcome to purchase straight high-quality 180*180*60MM Photovoltaic Inverter Cooling Fan at a good price.

With the increasing demand of energy and the strengthening of environmental protection, the promotion and application of clean energy such as ocean energy, solar energy, wind energy, biological energy, geothermal energy and water energy has become an inevitable trend.

Other energy sources are converted into electricity, and the electric energy into high voltage AC power into the grid, in this process will produce a lot of heat, resulting in the system temperature is too high, and then reduce the conversion efficiency or lead to the system crash. Choosing the most appropriate cooling solution ensures that the system operates stably and maintains the best performance, while reducing unnecessary maintenance costs (clean energy systems are generally far away from cities and difficult to maintain and replace). A good heat dissipation system is an important key to maintain the stable operation of the clean energy system.

As the professional manufacturer, Huatai according to the special use environment of clean energy system, the corresponding design of new IP68 protection grade fan, while both dust and waterproof, can through GR 487 salt fog, sand and other related test, while simulating photovoltaic inverter external fan outlet up, internal fan double 85 (85℃ ambient temperature & 85% RH humidity) application, related reliability and life test, to ensure that the clean energy system bad use environment.

Huatai would like to provide you 180*180*60MM Photovoltaic inverter cooling fan. And we will offer you the best after-sale service and timely delivery ,You are welcomed to come to our factory to buy the latest selling, low price, and high-quality Short delivery time enjoy two years after sale warranty, Huatai Factory looks forward to cooperating with you.

Material:

Frame: Die-Casting aluminum painted black

Impeller: PBT (UL94V-0)

Motor: Shaded pole

Protection: Impedance protection or thermal protection

Dielectric Strength: 50/60Hz 1500VAC 1min (Between input terminal and frame)

Temperature Range: Operating temperature ball bearing-40C~70℃ (Non-condensing), Sleeve bearing-20℃~70C(Non-condensing)

Expected Life: Ball bearing 5000hrs at 40℃, Sleeve bearing 3000hrs at 40C

Safety Approval: CE, LVD, CCC, ROHS

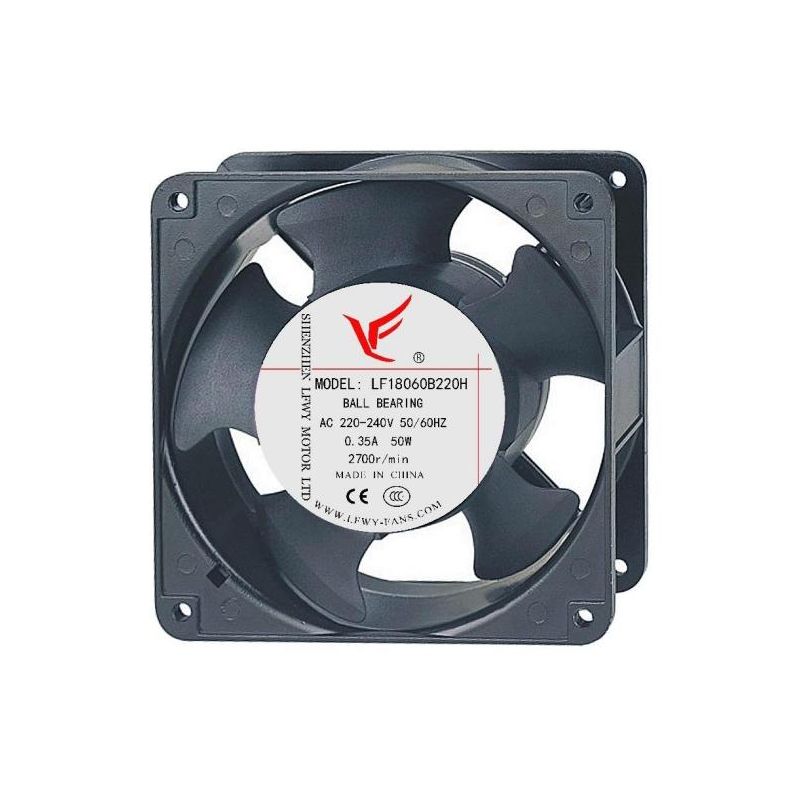

Model: LF18060B220H Brand: LF Wind leaf material: PBT Rated voltage: 110V, 220V Working temperature: -20℃~+70℃ Blowing rate: 204.72~267.03CFM Noise: 58.50~61.70dB-A Weight: 1460.0g	Size: 180x180x60mm Type: Ball bearing /sleeve bearing Machine frame material: alufer Power rating: 45.00~50.00W Speed: 2300~2500RPM Wind presssure: 0.30~0.51Inch-H₂OO Life: 50000hrs Attestation: CCC, CE, LVE, ROHS
Dimensions (Unit: mm)	PQ Curve (At rated Voltage)
