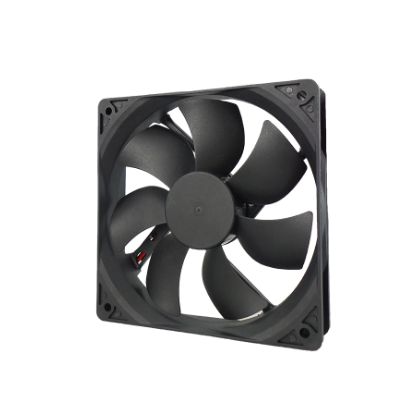

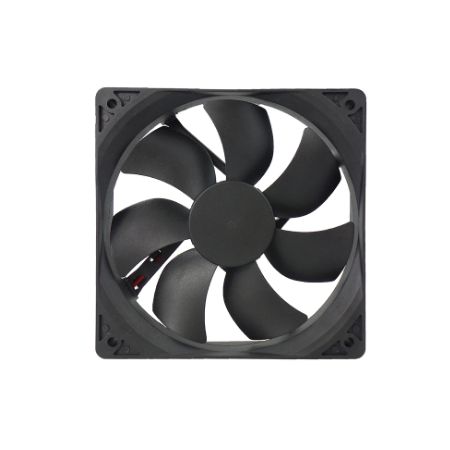

DC 120*120*25mm Cooling Fan

Dongguan Huatai factory is a professional production and research and development of ac / dc cooling fan manufacturers, we have more than ten years of experience in production, 120 * 120mm Energy Storage Power Fan are widely used in new energy, outdoor energy storage power supply, battery, engine heat dissipation, charger, new energy vehicles and other industries. Our fans offer good cooling performance, high air volume, quiet operation, low noise, energy conservation, and environmental protection, as well as low cost, high quality, and quick delivery. We can also provide OEM/OEM services and can customize the specifications of our customers.

Welcome you to our factory and choose and buy 120 * 120mm Energy Storage Power Fan, bring you better products and services, let you use rest assured, we have strict product quality inspection, give you high quality products, guarantee the company high reputation, our fan enjoy two years of after-sales warranty, will provide you with the best after-sales service, huatai factory looking forward to cooperate with you

·Type: double Ball bearing /sleeve bearing

·Wind leaf material: PBT

·rated voltage: 12V, 24V, 36V, 48V

· Power rating: 2.4-19.2W

·Air quantity: 59.08-102.78CFM

·Wind pressure: 0.11-0.32Inch-H2O

·Working temperature: -10℃~+70℃

·Speed: 2000-5000RPM

·Noise: 36.00-50.70dB-A

·Life: 30000~70000hrs

·Weight: 140.0g

·Attestation: UL, TUV, RoHS, CE

Material

Frame: Plastic(UL94V-0)

Impeller: Plastic(UL94V-0)

Lead Wire: UL1571AWG#28 or Equivalent(+)Red, (-) Black

Expected Life: Ball Bearing 70,000hrs(40*C)

Sleeve Bearing 30,000hrs(40C)

Temperature Range: Operating Temperature-10°C~70℃(Non-condensing)

Storage Temperature-40*C~70℃(Non-condensing)

Safety Standards: UL/TUV/ROHS/CE

DC Fan Specials: RD.FG, IP54, PWM

DC 120*120*38mm cooling fan

·Type: double Ball bearing /sleeve bearing

·Wind leaf material: PBT

·rated voltage: 12V, 24V, 36V, 48V

· Power rating: 2.4-19.2W

·Air quantity: 135.24-201.84CFM

·Wind pressure: 0.11-0.32Inch-H2O

·Working temperature: -10℃~+70℃

·Speed: 3000-4500RPM

·Noise: 54.1-63.90dB-A

·Life: 30000~70000hrs

·Weight: 265.0g

·Attestation: UL, TUV, RoHS, CE

Material

Frame: Plastic(UL94V-0)

Impeller: Plastic(UL94V-0)

Lead Wire: UL1571AWG#28 or Equivalent(+)Red, (-) Black

Expected Life: Ball Bearing 70,000hrs(40*C)

Sleeve Bearing 30,000hrs(40C)

Temperature Range : Operating Temperature-10°C~70℃(Non-condensing)

Storage Temperature-40*C~70℃(Non-condensing)

Safety Standards: UL/TUV/ROHS/CE

DC Fan Specials: RD.FG, IP54, PWM

DC 120*120*32mm cooling fan

·Type: double Ball bearing /sleeve bearing

·Wind leaf material: PBT

·rated voltage: 12V, 24V, 36V, 48V

· Power rating: 6.0-28.8W

·Air quantity: 61.26-106.44CFM

·Wind pressure: 0.14-0.37nch-H2O

·Working temperature: -10℃~+70℃

·Speed: 3000-4500RPM

·Noise: 33.00-47.90dB-A

·Life: 30000~70000hrs

·Weight: 250.0g

·Attestation: UL, TUV, RoHS, CE

Material

Frame: Plastic(UL94V-0)

Impeller: Plastic(UL94V-0)

Lead Wire: UL1571AWG#28 or Equivalent(+)Red,(-) Black

Expected Life: Ball Bearing 70,000hrs(40*C)

Sleeve Bearing 30,000hrs(40C)

Temperature Range: Operating Temperature-10°C~70℃(Non-condensing)

Storage Temperature-40*C~70℃(Non-condensing)

Safety Standards: UL/TUV/ROHS/CE

DC Fan Specials: RD.FG, IP54, PWM
